FoxAlien Fixed-focus FA40W Engraver Module Class 4 450nm PWM TTL for FoxAlien Masuter 4040, Masuter Pro, 4040-XE, WM3020, XE-PRO, Vasto Series CNC Engraving Machine (10000mW Optical Output)

Brand: FoxAlien

Features:

• The FoxAlien 40W engraving module features a new technology "light beam compression", which have excellent performance in engraving delicate jobs and details.
• The focus distance is fixed by 40mm. The package includes a positioning block for easy focusing. Electrical output: 40W; Optical output: 10000mW.
• It is made of aluminum which also functions as a large heatsink. With the aluminum body and cooling fan, heat dissipates faster. This ensures the module has a long service life.

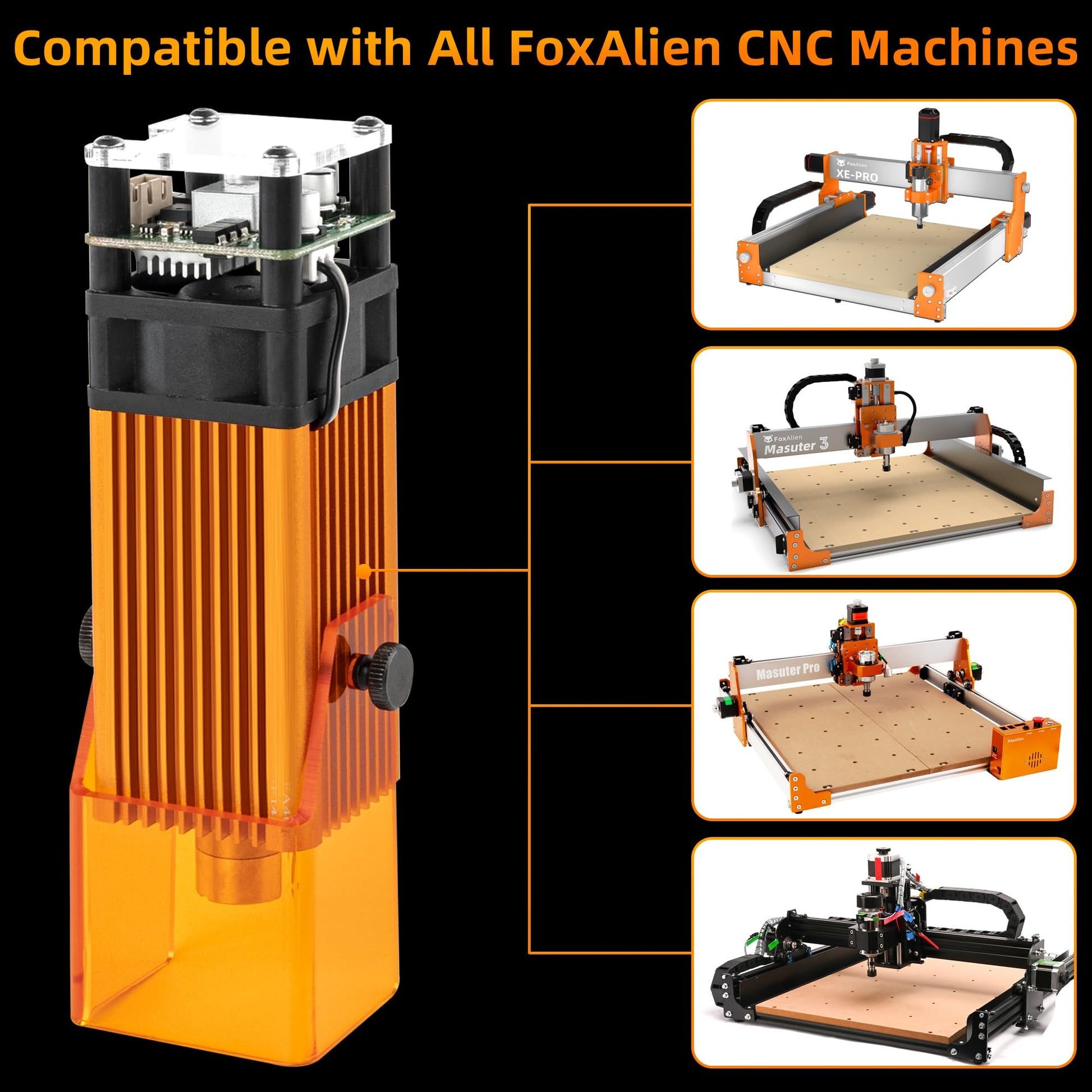

• It is compatible with all FoxAlien CNC machines, such as Reizer, Reizer Mega, Masuter, Masuter Pro, XE-PRO, 4040-XE, WM3020 and Vasto.

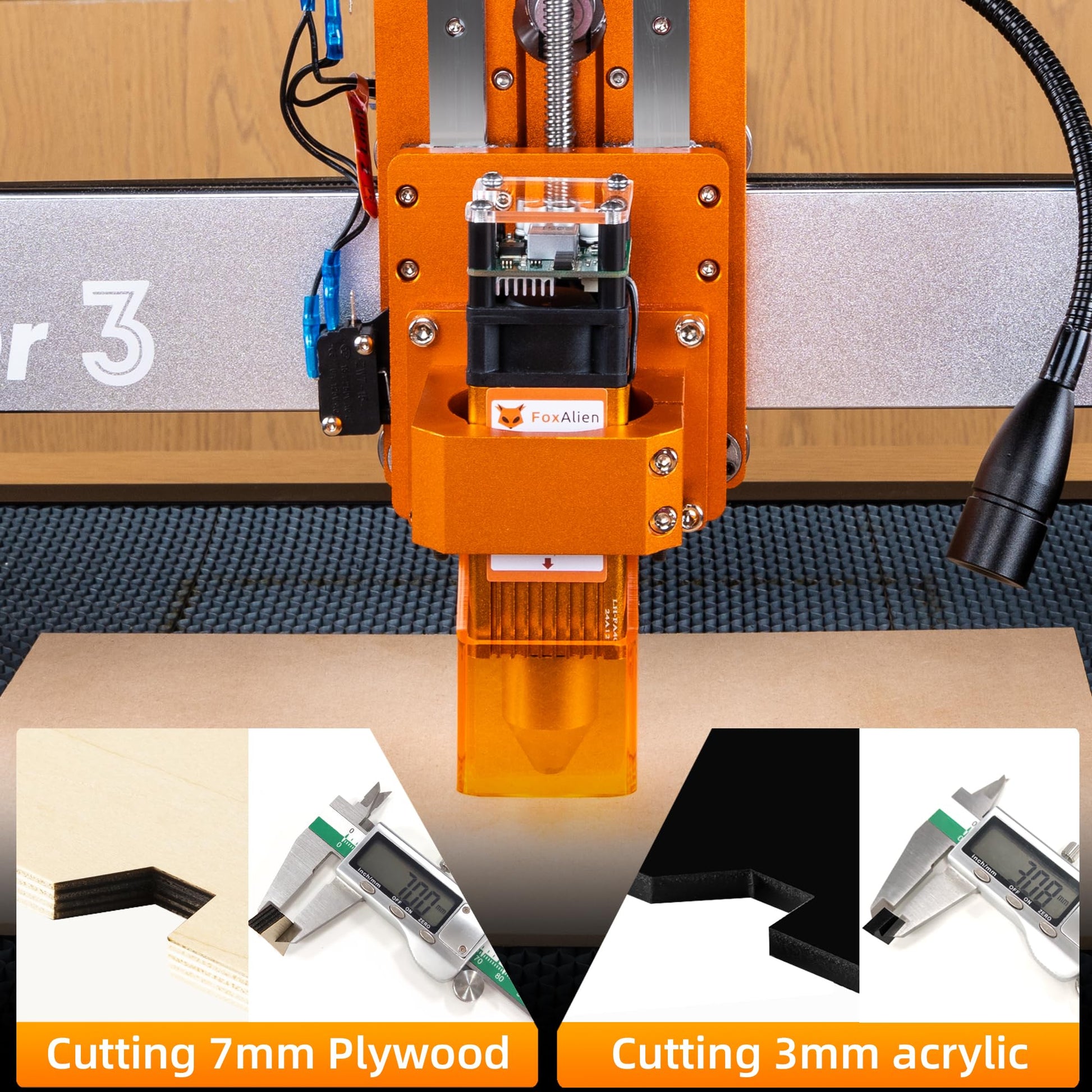

• This power module is ideal for engraving and cutting many different kinds of material such as plywood, bamboo, cardboard, acrylic, MDF etc.

model number: LH-40WF

Part Number: LH-40

Details: !!! Warnings:
This power unit belongs to Class 4. Please wear protective goggles while operating the module. Please avoid direct exposure to the eyes and skin. In order to avoid unexpected accidents happens, please stay with the machine while the module is working.
Specifications

Electric Output power: 40W Optical Output power: 10000mW Class: Class 4 Wave length: 445nm blue light Recommend Focus Distance for Cutting: 40mm Recommend Focus Distance for Engraving: 40mm Voltage: 12V Current: 2A Service life: >10,000 hours Working temperature: -40~75℃
Applications:
Engraving/cutting MDF/Balsa wood/plywood/wood/fabric/plastic/leather/EVA Foam/Anodized Aluminum/Coated metal surface

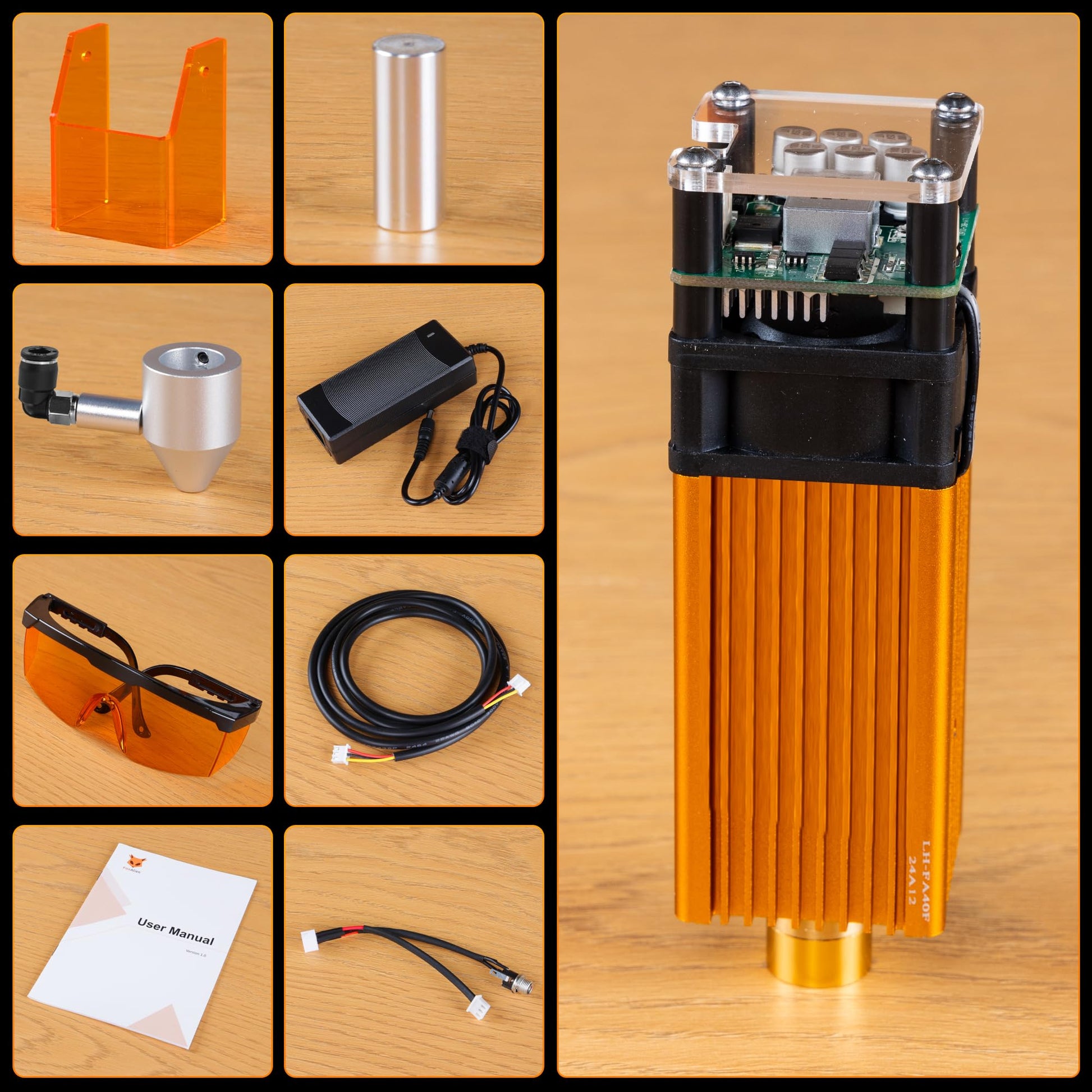

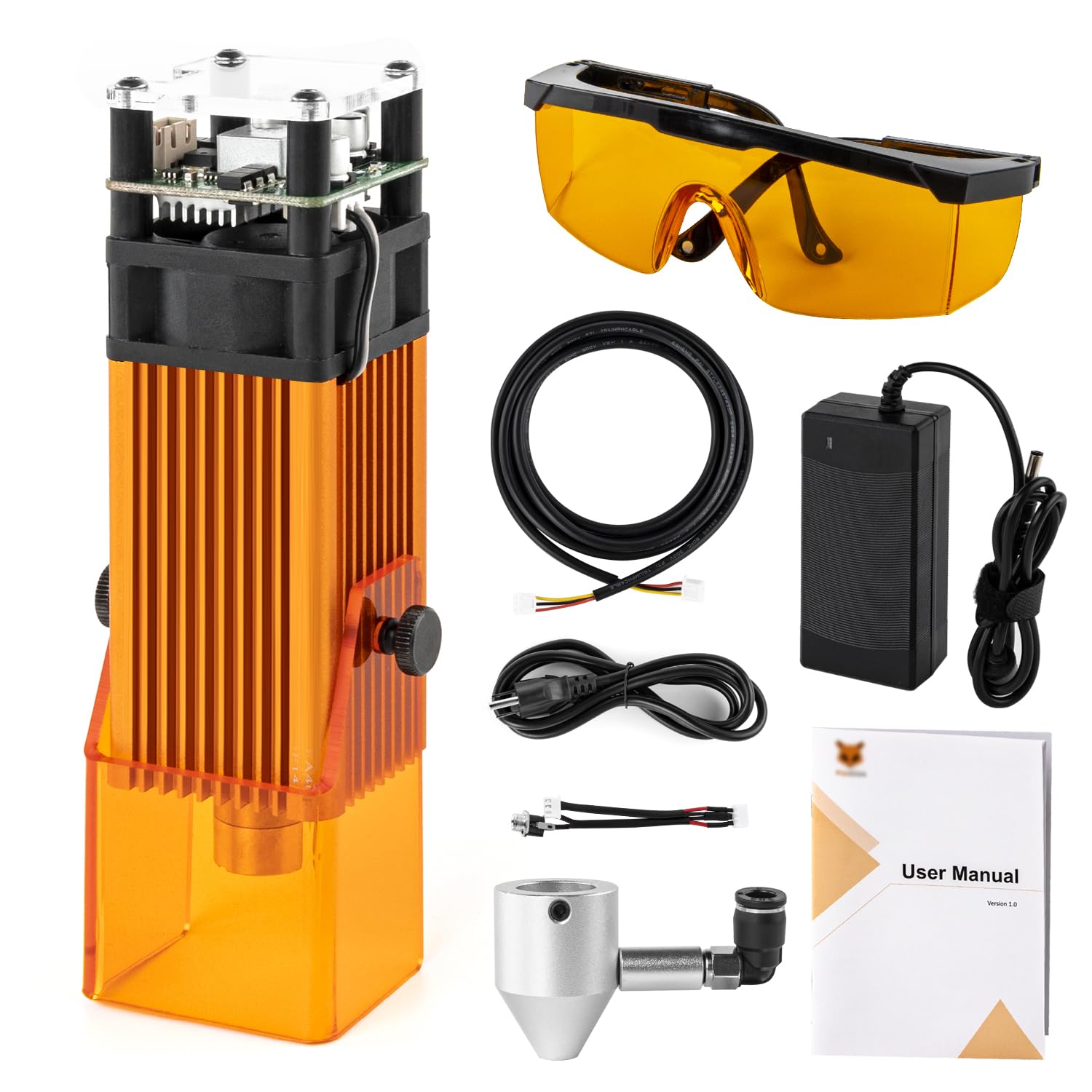

Package List 1x FoxAlien Power Module (Compatible with all FoxAlien CNC machines) 1x Goggles 1x Light Shield
1x Positioning Block 40mm 2x Wires 1x Power Adapter

EAN: 0778107043403

Package Dimensions: 8.0 x 6.5 x 3.3 inches
